Automatic CNC Touch Pulse Argon Arc Tig Jewelry Spot Welding Machine

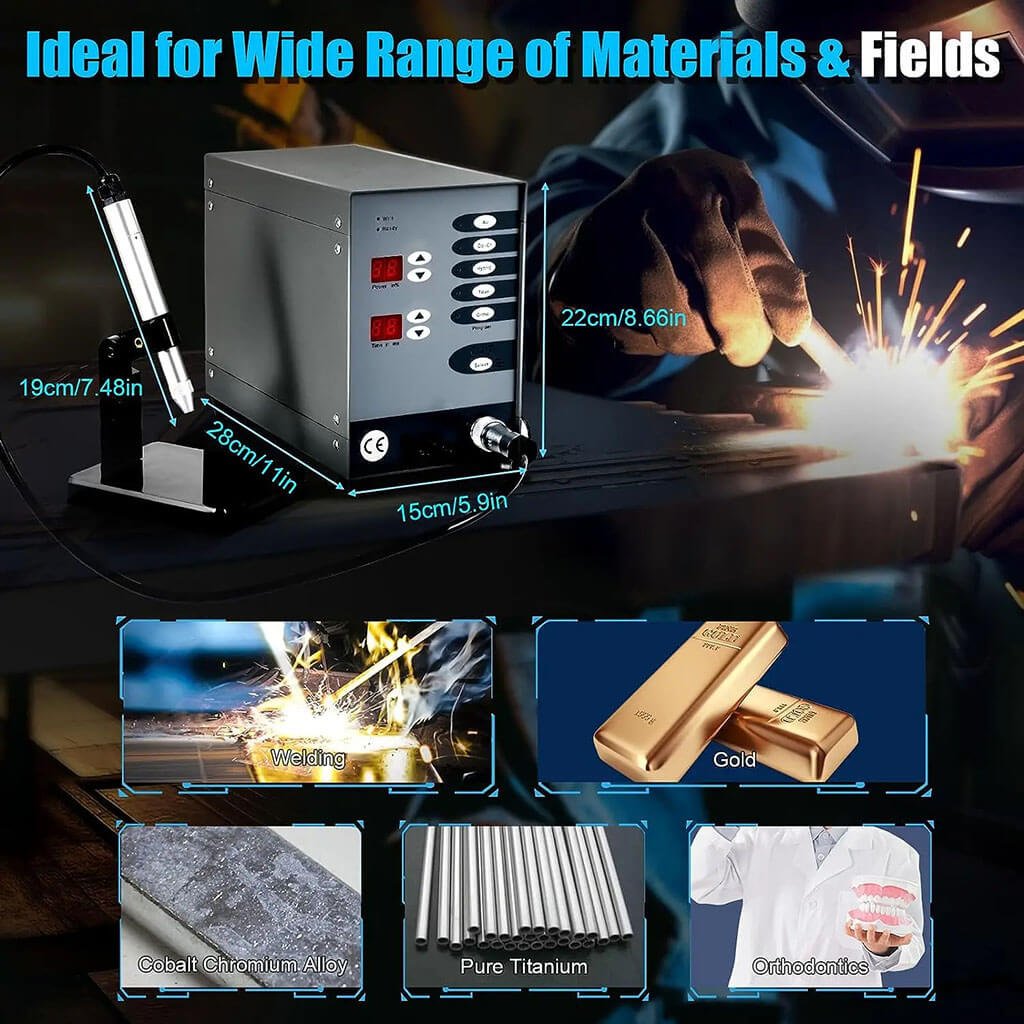

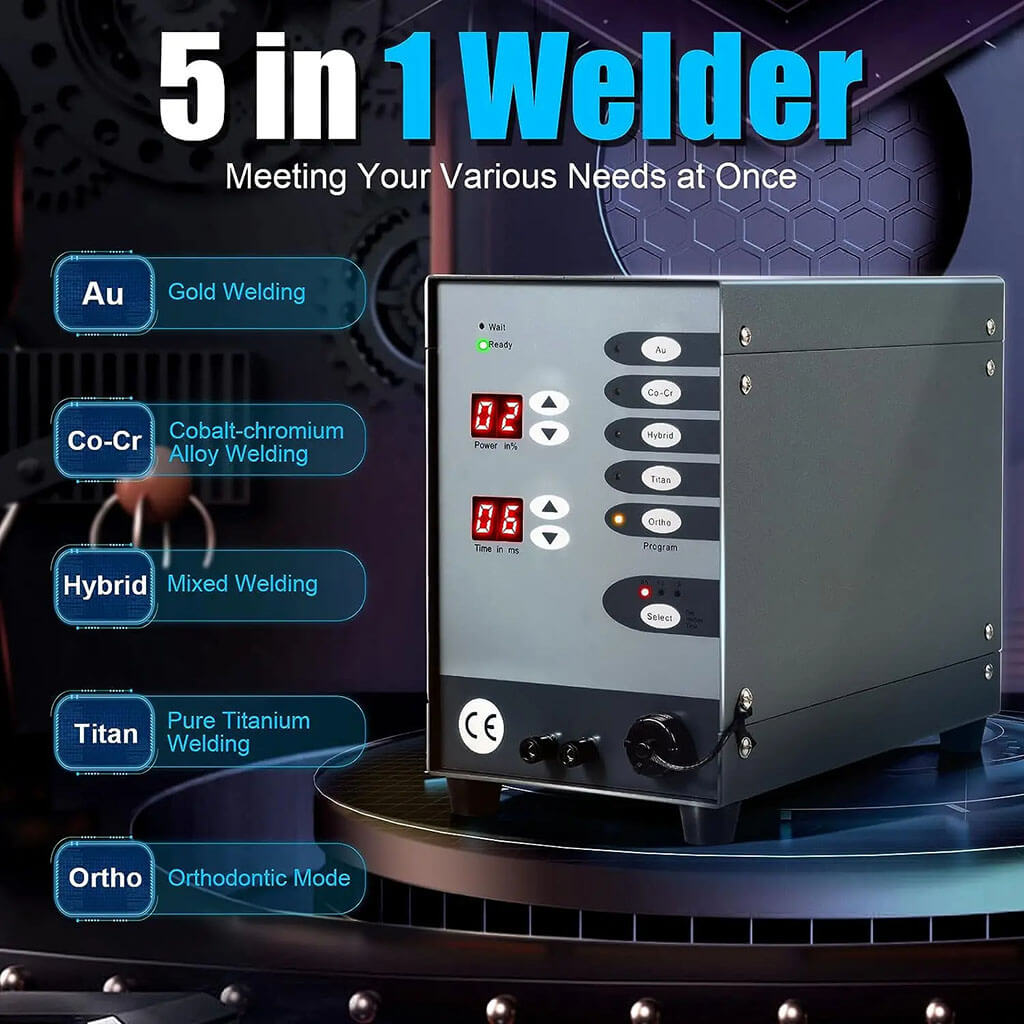

The Automatic CNC Touch Pulse Argon Arc Tig Jewelry Spot Welding Machine is designed for precise welding of various materials, including hardware, jewelry, dental tools, molds, and precious metals such as gold, cobalt-chromium, and titanium. This advanced welding machine utilizes pulse-dense arc technology, delivering efficient and cost-effective results that rival traditional laser welding machines. It features five preset basic procedures for various materials and is stable, low-noise, and easy to maintain. Plus, its small footprint makes it a practical option for any workspace. With adjustable power and pulse settings, users can control the penetration depth and solder joint diameter with precision. Additionally, the machine has an auto-deactivate feature after five minutes of inactivity, preventing any potential damage to the workpiece. It's the ideal solution for jewelry and dental welding needs.

TIP: Better welding results can be obtained by connecting argon gas through a pressure gauge. Welding is possible without argon gas.

Technical data

Power supply: 220V/110V 50/60Hz
Power consumption: 100W
Protection level: IP21
Air supply pressure: above 0.1Mpa
Welding voltage: 40V
Welding current:50A-150A
Welding time: 3ms--30ms
Maximum welding thickness: 5mm
Maximum value. Welding frequency: 1Hz
Maximum value. Argon consumption: 5L/min
Fuse: 250V/2.0A
Package weight: 8.0 kg
Packing size: 42cm x 30cm x 26cm

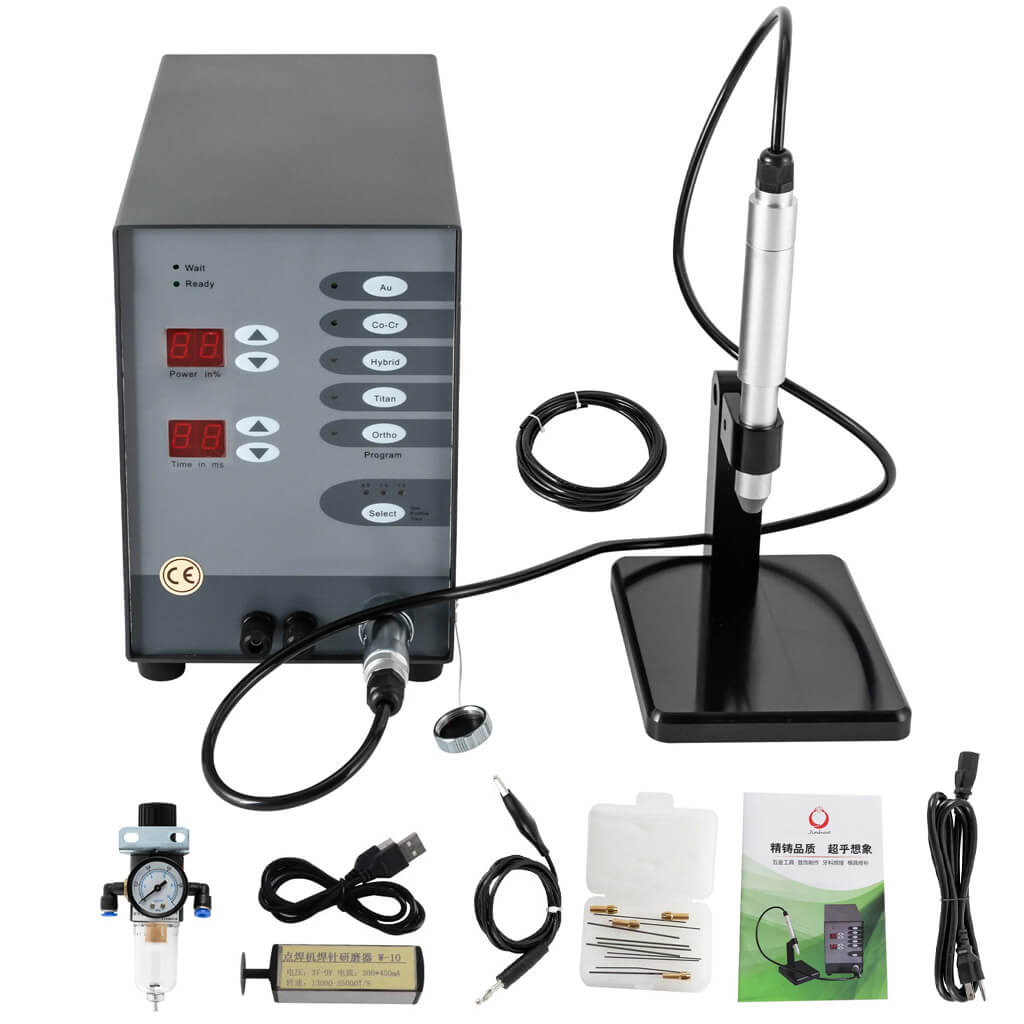

 Package standard

1* Automatic CNC Jewelry spot welder
1* Pedestal + Handle
1* Welding Loop Clamp
1* Spot welding brush grinder
1* Pressure gauge
1* Trachea 2m
1* Tungsten needle

To avoid electric shock, fire and dangerous accidents when using electrical equipment, please pay attention to the following basic safety measures.
1. Please read this manual and precautions before using the instrument. Keep this manual near the instrument for easy viewing.
2. Keep electronic equipment away from children. It is absolutely forbidden for children to play with electrical equipment, spare parts and other cables.
3. Maintain good ventilation and lighting when the equipment is running, and do not work in a humid and dusty environment to avoid accidents due to abnormal environments.
4. Do not let any liquid enter the instrument.
5. A strong arc will be generated during operation, and irrelevant personnel should stay away from the work site to avoid eye injury.
6. Do not use cables to drag the equipment. The cable should be kept away from heat, oil and other sharp objects to avoid damage to the cable.
7. The power supply must be completely cut off before cleaning the equipment and unpacking.
8. The structure of this machine is compact and reasonable. Doesn't it need to be special? And tedious maintenance. Pay attention to the cleanliness of the instrument, especially the microscope. Dirty accessories will seriously affect the observation of objects.
9. Cover the dust cover when the instrument is not working.
10. For your safety, please use the correct accessories.
Note: This machine does not have a microscope, and it can work without a microscope.
